1. Corrosion resistance
2. good water resistance
3. Long lasting
4. Specifications can be customized
| Color: | |
|---|---|
| Model Number: | |
| Thickness: | |
| Width: | |
| Length: | |
| Package: | |
| Standard: | |
| Quantity: | |
geomembrane
zhongloo
geomembrane
1mm Plastic Hdpe Swimming Pool Geomembrane Pond Liner Geomembrane Dam Price for Fish Farming
Products Description
Our high density polyethylene (HDPE) geomembranes provide an impermeable barrier against a wide range of solids and liquids. They exhibit excellent chemical and UV resistance,impermeability, and high yield and welded seam strengths, which is widely used as the liner.(model according to the thickness of distinction, different thickness and different price) production capacity: thickness:0.1 mm -6 mm, width: 1-8 meters. It is suitable for seepage control in special industries, and is widely used for aquaculture, seepage control, reservoirs or sewage treatment ponds.
Specification
| Geomembrane Technical Parameter (GB standard) | |||||||
| Spec Properties | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | 0.5mm | 0.75mm | 1.0mm | 1.25mm | 1.5mm | 2.0mm | 2.5mm |
| Tensile Properties (each direction) (≥) .yield strength .break strength .yield elongation .break elongation | 7KN/m 10KN/m -- 600% | 10KN/m 15KN/m -- 600% | 13KN/m 20KN/m 11% 600% | 16KN/m 25KN/m 11% 600% | 20KN/m 30KN/m 11% 600% | 26KN/m 40KN/m 11% 600% | 33KN/m 50KN/m 11% 600% |
| Density(≥) | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc |
| Puncture Restistance (≥) | 120N | 180N | 240N | 300N | 360N | 480N | 600N |
| Carbon Black Content | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon black Dispersion | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) |
| Tear Resistance (≥) | 56N | 84N | 115N | 140N | 170N | 2255N | 280N |
| Oxidative Induction Time(OIT) Standare OIT(≥) | 60min. | 60min. | 60min. | 60min. | 60min. | 60min. | 60min. |
Geomembrane Feature
1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Good adaptability to high and low temperature, non-toxicity, long service life
5) Good waterproof, drainage, anti-seepage and damp proof effects
6) Complete width and thickness specifications, low cost and easy installation
Geomembrane Applicatio

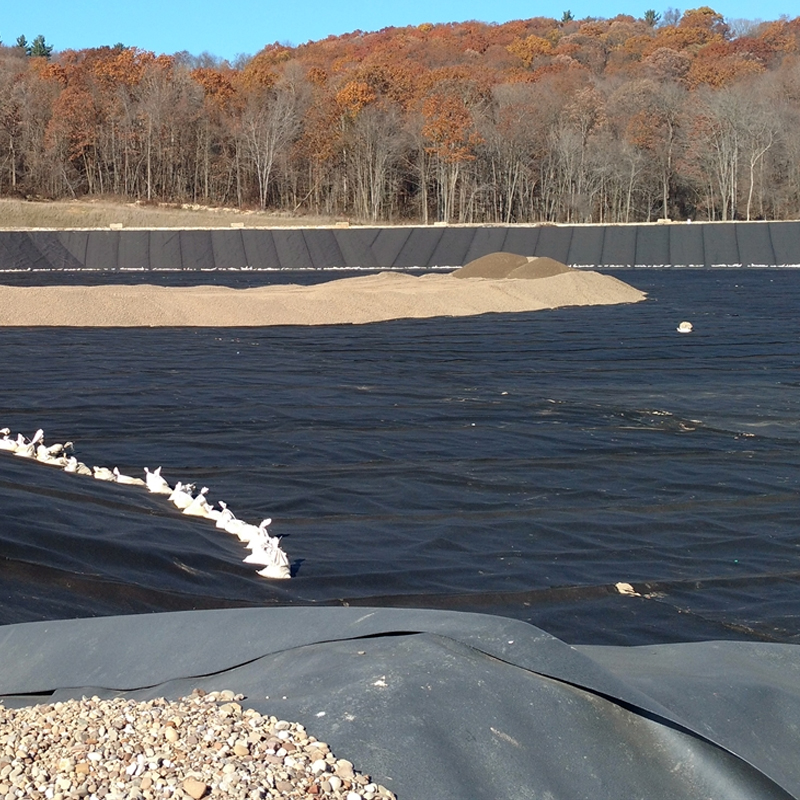

1. Environmental Protection and sanitation: such as landfill, sewage treatment plant, power plant regulation pool, industrial and hospital solid waste, etc;
2. Water conservancy projects: such as seepage prevention, plugging, reinforcement, Canal seepage prevention, vertical core wall, slope protection, etc. of Rivers and Lakes reservoir dams;
3. Municipal Engineering: Subway, building underground engineering, planted roof, roof garden, sewage pipe anti-seepage;
4. Petrochemical: chemical plant, refinery, oil storage tank anti-seepage, chemical reaction tank, sedimentation tank lining, secondary lining, etc;
5. Agriculture: Reservoir, drinking water pool, storage pond, waste residue treatment field, and anti-seepage of irrigation system; 6. Aquaculture industry: intensive, factory breeding pond, fish pond, shrimp pond lining, sea water circle slope protection, etc;
7. Salt industry: Salt Field crystallization pool, halogen pool cover, Salt film, salt pool plastic film
