Views: 0 Author: Site Editor Publish Time: 2023-04-03 Origin: Site
HDPE Geocell is a lightweight and flexible three-dimensional, expandable panels made from high-density polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.
HDPE Geocell system can be filled with a wide range of material: aggregate,concrete,sand,soil,etc.
1, Virgin HDPE basic with Unique Formula.
2, Tensile Strength reaches 33000 kN/m² (33 MPa)
3, Seam Peel Strength above 16 kN/m (USACE GL-86-19); Split Strength above 28 kN/m (EN ISO13426-1 Method C).
4, Various weld spacing available from 220mm to 1600mm
5, Various strip height available from 25mm to maximum 300mm
6, Maximum strip length reaches 8m, expanded width reaches 6m.
7, Reduce construction thickness, improve load and bearing capacity, long life span, save maintenance cost
8, Easy to transport, all weather installation with high construction speed.
9, Local infill materials available, ungraded or recycled materials are acceptable, reduce construction cost.
1, Raw Material HDPE Resin
2, Extrusion Sheet

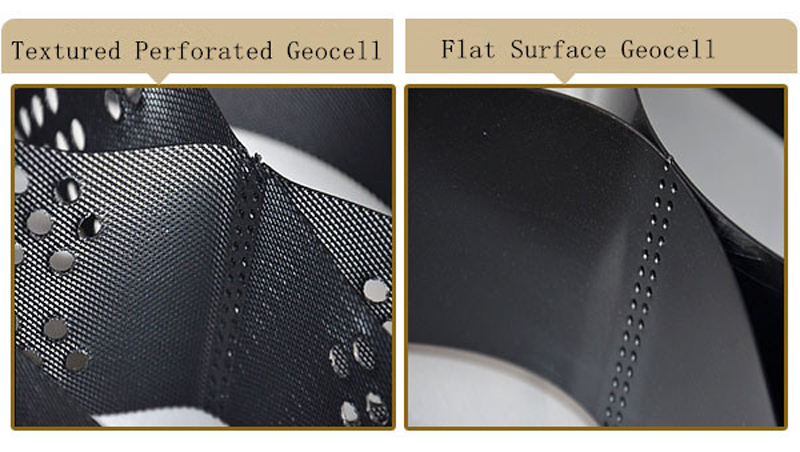

3, Textured Perforate
4 Welding
5 Finished Product Per piece
6, Packing Pallet
To Stable the Roadbed of Highroad
Ground Stabilization
To Bear load of dike or Retaining wall
To improvement of shallow riverway
Prevention Landslide Retaining wall

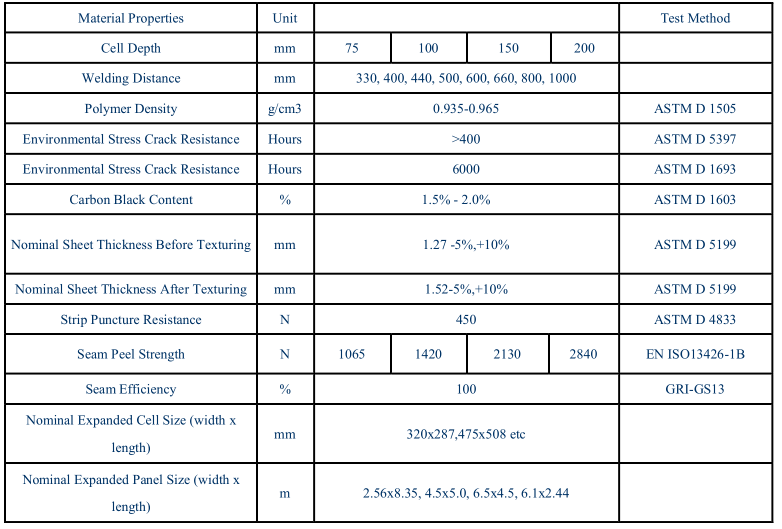

Technical Parameters:
Production & Package:
For any need, you can contact us, Mary +8618130028453, mary@zhongloo.com, Zhongloo (https://www.zlgeo.com/contactus.html).
