Factory Price Driveway Geocells Erosion Control Ground Grid Paver Geocell for Retaining Wall

1. Freely retractable, foldable for transportation

2. Wear resistance, photooxidation resistance, acid and alkali resistance

3. High lateral restriction and anti-slip, anti-deformation

4. Convenient connection and fast construction speed

Color:
Application:
Product name:
Peel strength of welding point:
Keyword:
THICKNESS:
Availability:
Quantity:
  • geocell

  • zhongloo

  • 3926909090

Factory Price Driveway Geocells Erosion Control Ground Grid Paver Geocell for Retaining Wall

IMG_1451_副本1


1.HDPE Paving Plastic Gravel Stabilizer Geocell Introduction:

Plastic geocell cellular confinement system is three dimensional , honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique . It is flexible to fold during the transport and installation on construction site . The geocell nets will be filled with soils , granular, cements or other on-site infill materials when stretched into web structures , which has powerful and rigid confinement in the lateral and vertical sides .

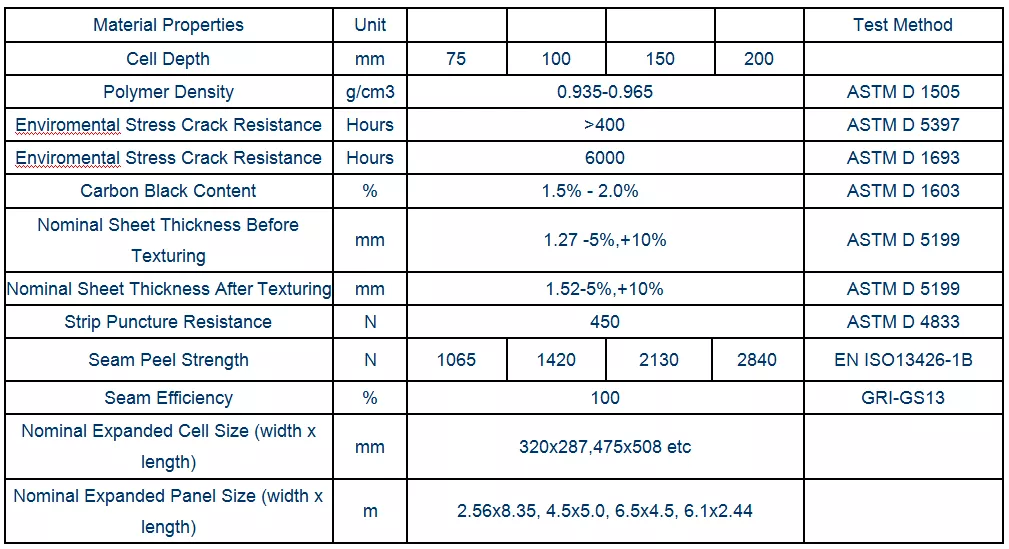

2.HDPE Paving Plastic Gravel Stabilizer Geocell Specifications:
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm

4. Appearance: smooth / textured


3.HDPE Paving Plastic Gravel Stabilizer Geocell Features:
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance .
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together .

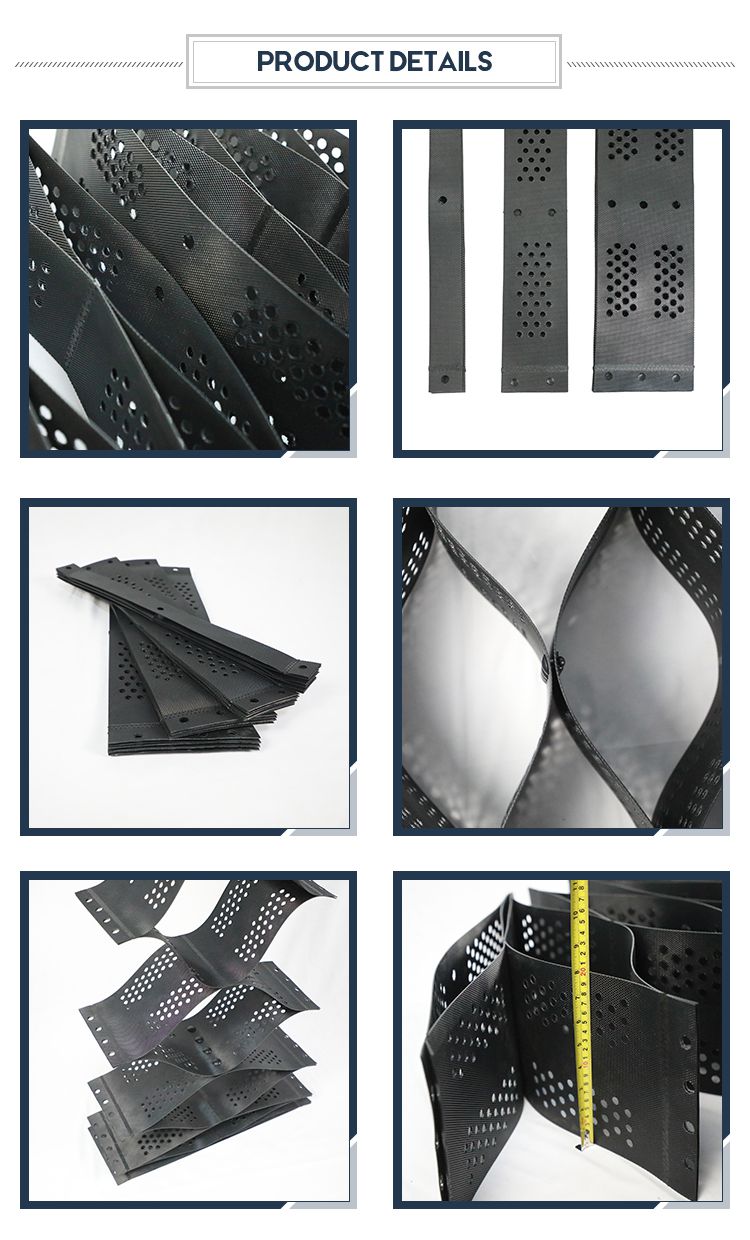

geocell detail informations
Factory sale HDPE Geocell geo cell road grid gravel honeycomb gravel driveway price Geocell Ground Grid Paver
.Applications:HDPE paving plastic gravel stabilizer geocell
1. Used for all kinds of road building , driveways , soil stabilization and embankment stabilization
2. Used to stabilize river embankments .
3. Used to prevent landslides .

4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed , construction speed ,good performance and greatly reduce the project cost .



geocell application


Load Support



Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances.load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.


geocell application




Slope Pretection


The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques ensures the long-term stability of slopes using vegetated topsoil, aggregate or concrete surfacing






geocell application


Gruound Stabilisation



Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement; working platforms in intermodal ports; airport runways.
Retaining Wall



geocell application





Retaining Wall



Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls) for steep faces, walls and irregular topography



Anhui Zhonglu Engineering Materials Co.,ltd ,with a registered capital of 52 milion,is located in hefei China. It is a high-techenterprise integrating the production, development and sales of new geosyntheticsuch as geotextile, geomembrane geogrid, warp knitted composite, geonet, waterproof and dranage board.
Zhonglu Geosynthetics, as leading manufacturer of geosynthetics materials, enables our company to provide customers excellent delivery time and high quality products.

Good quality and good services:

(1)Service: A. OEM/ODM orders are warmly welcome

 B. All of our products have proceeded testing before shipment and we guaranteed the good quality .

 (2) Quality Control: We have established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing . Not only is stringent internal quality control carried out at zhonglu , but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States .


Q:Can you send samples?
A:Yes, we are very happy to provide you with free samples to check the quality of our products.

Q:Are you a manufacturer or a trading company?
A:Our company located in Hefei,Anhui Province,with are gistered capital of 52 miion yuan. It is a professional manufacturer of geomembrane, geotextile, geogrid and other products. So we have the competitive price with best quality.

Q:Can you produce the product according to customers' requirements?
A:Sure,we are professional manufacturer,OEM and ODM are both welcome.

Q:How long is the delivery time?
A:General within 3-7days after received the deposit.

Q:How to control product quality?
A:Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.
