1. High strength
2. Strong puncture resistance.
3. Acid and alkali resistance, corrosion resistance
4. High water permeability
| Keyword: | |
|---|---|
| Application: | |
| Material: | |
| Color: | |
| Usage: | |
| Width: | |
| Length: | |
| Quantity: | |
geotextile
Non Woven short fiber Geotextile
Non-Woven Short Fiber Geotextile Fabric
Product Description
Made from PET(polyester) or PP(polypropylene) by nonwoven needle punched manufacturing, it has isolation, filtration, drainage, reinforcement, protection and maintenance etc. fuction.
2.Product Feature
(2). Separation, filtration, drainage, reinforcement , protection and maintentance function.

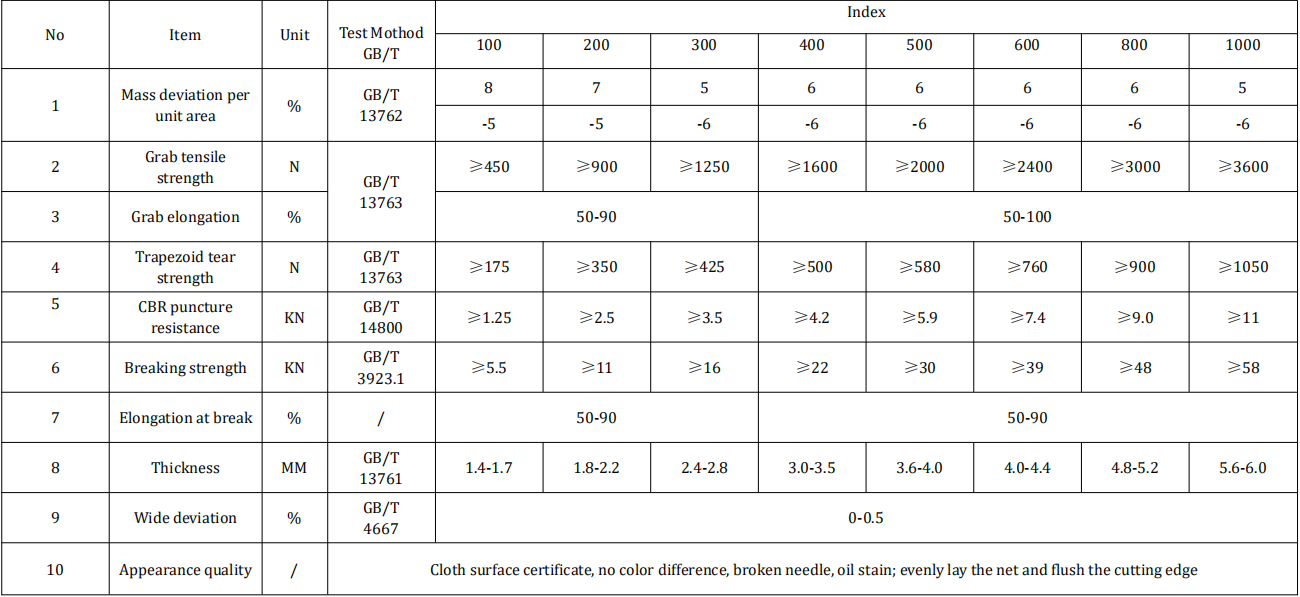

Technical data sheet of polyester geotextile
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
3.Product Parameter
4.Project Cases
Geotextile is mainly used in the following projects: in the highway (including temporary road) railway, embankment, earth rock dam, airport, sports field and other projects, to strengthen the weak foundation at the same time play the role of isolation and filtration.
Separation
To separate two layers of soil with different physical properties, such as the separation of road gravel from soft sub-base materials.
Reinforcement
To improve the load bearing capacity of a specific soil structure, such as the reinforcement of a retaining wall.
Drainage
Non-Woven Short Fiber Geotextile Fabric
Product Description
Made from PET(polyester) or PP(polypropylene) by nonwoven needle punched manufacturing, it has isolation, filtration, drainage, reinforcement, protection and maintenance etc. fuction.
2.Product Feature
(2). Separation, filtration, drainage, reinforcement , protection and maintentance function.
Technical data sheet of polyester geotextile
| Gram weight | Thickness(mm) | Breaking strength(kn/m) | CBR burst strength(KN) | Elongation at break(% | Tear Strength(KN) | Sieve size O99(O35)mm |
| 100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
| 150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
| 200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
| 250 | 2.1 | 8.0 | 1.2 | 25-100 | 0.20 | 0.07-2.0 |
| 300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
| 350 | 2.7 | 11.0 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
| 400 | 3.0 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
| 450 | 3.3 | 14.0 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
| 500 | 3.6 | 16.0 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
| 600 | 4.1 | 19.0 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
| 800 | 5.0 | 25.0 | 4.0 | 25-100 | 0.60 | 0.07-2.0 |
3.Product Parameter
4.Project Cases
Geotextile is mainly used in the following projects: in the highway (including temporary road) railway, embankment, earth rock dam, airport, sports field and other projects, to strengthen the weak foundation at the same time play the role of isolation and filtration.
Separation
To separate two layers of soil with different physical properties, such as the separation of road gravel from soft sub-base materials.
Reinforcement
To improve the load bearing capacity of a specific soil structure, such as the reinforcement of a retaining wall.
Drainage
