Plastic Biaxial Polypropylene HDPE Geogrid Composite Geogrid Composite Polypropylene Geocomposite Geogrid
Product Introduction
The properties of Biaxial Geogrids, made of Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of PP Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. PP Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill.Anhui Zhonglu (www.zlgeo.com).
Technical parameters
| MODEL | TGSG15-15 | TGSG20-20 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 | |||
| Mass per Unit Area (g/m2) | 300±30 | 330±30 | 400±40 | 500±50 | 550±50 | 600±50 | |||
| Width (m) | 1-6m | ||||||||
| Tensile Yield Force per Linear Meter (KN/m) (MD) | 15 | 20 | 30 | 40 | 45 | 50 | |||
| Tensile Yield Force per Linear Meter(KN/m) (CD) | 15 | 20 | 30 | 40 | 45 | 50 | |||
| (MD)Yield Elongation (%)≤ | 15 | ||||||||
| (CD)Yield Elongation (%)≤ | 13 | ||||||||
| Strength at 2% Strain, (KN/m)≥(MD) | 5 | 8 | 11 | 15 | 18 | 19 | |||
| Strength at 2% Strain(KN/m) ≥(CD) | 7 | 10 | 13 | 17 | 20 | 24 | |||
| Strength at 5% Strain (KN/m) ≥(MD) | 8 | 15 | 24 | 30 | 35 | 39 | |||
| Strength at 5% Strain (KN/m) ≥(CD) | 10 | 16 | 25 | 31 | 36 | 40 | |||
| Mesh Size (mm) | 30*30 | 36*38 | 34*36 | 34*36 | 40*40 | 40*40 | |||
| Remark | Special specifications can be customized according to the contract. | ||||||||
Product Benefits
Improving bearing capacity of foundation
Preventing cracking and subsiding
Convenient to construct, reducing cost and maintaining expense

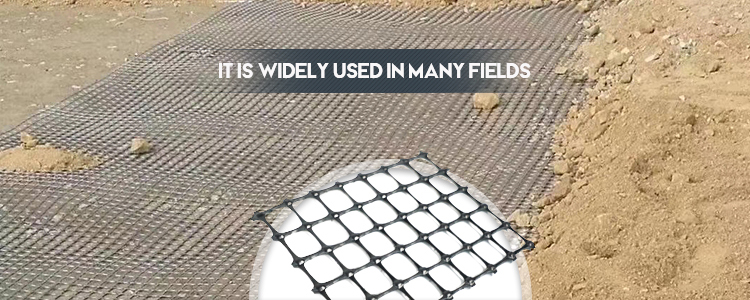

Product Application
1. Reinforcement and Stabilisation of earth fencing walls, railways, highways and water conservation projects;

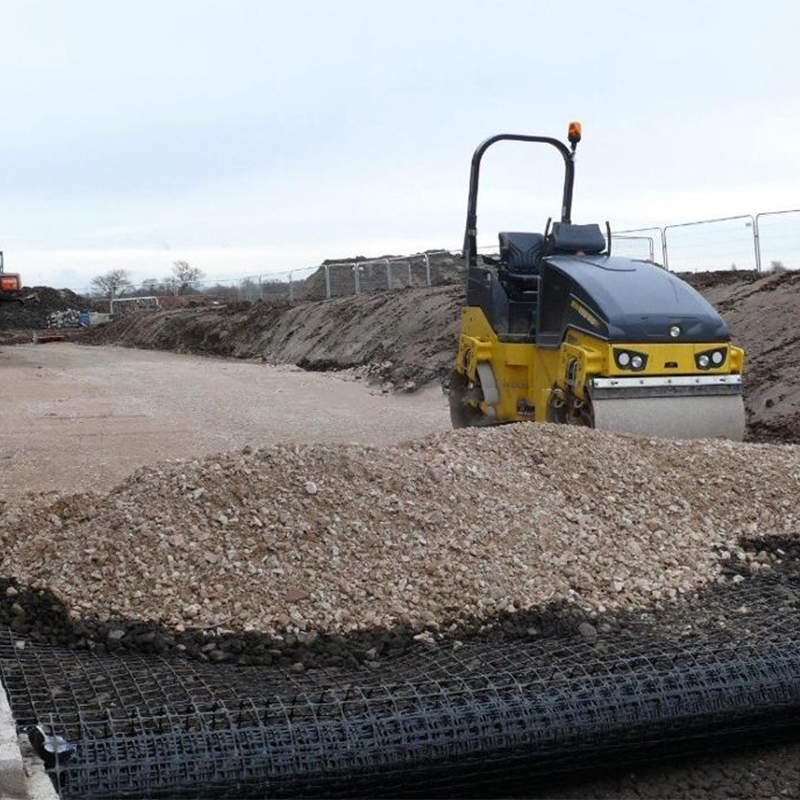

2. Reinforcement of road foundations;
3. Retaining walls;
4. Road slope repair and reinforcement;
5. Be used in noise barriers construction.
