Views: 0 Author: Site Editor Publish Time: 2024-06-24 Origin: Site
HDPE geoweb system for roadbed, slope protection
Geocells are engineered for protection and stabilization applications. They are often used to help improve the performance of standard construction materials and erosion-control treatments.

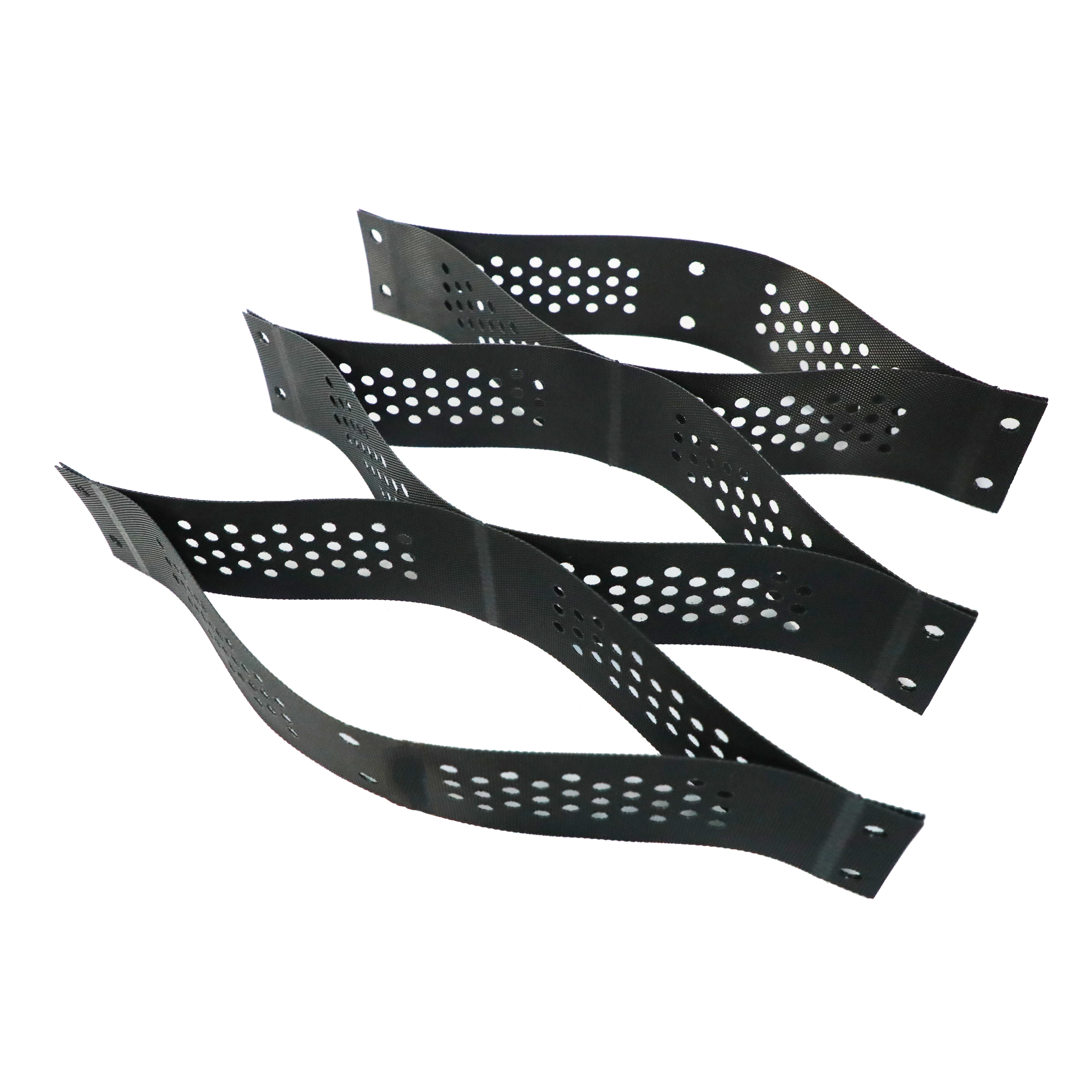

Geocell products are three-dimensional, expandable panels made from high-density polyethylene (HDPE), polyester or another polymer material.

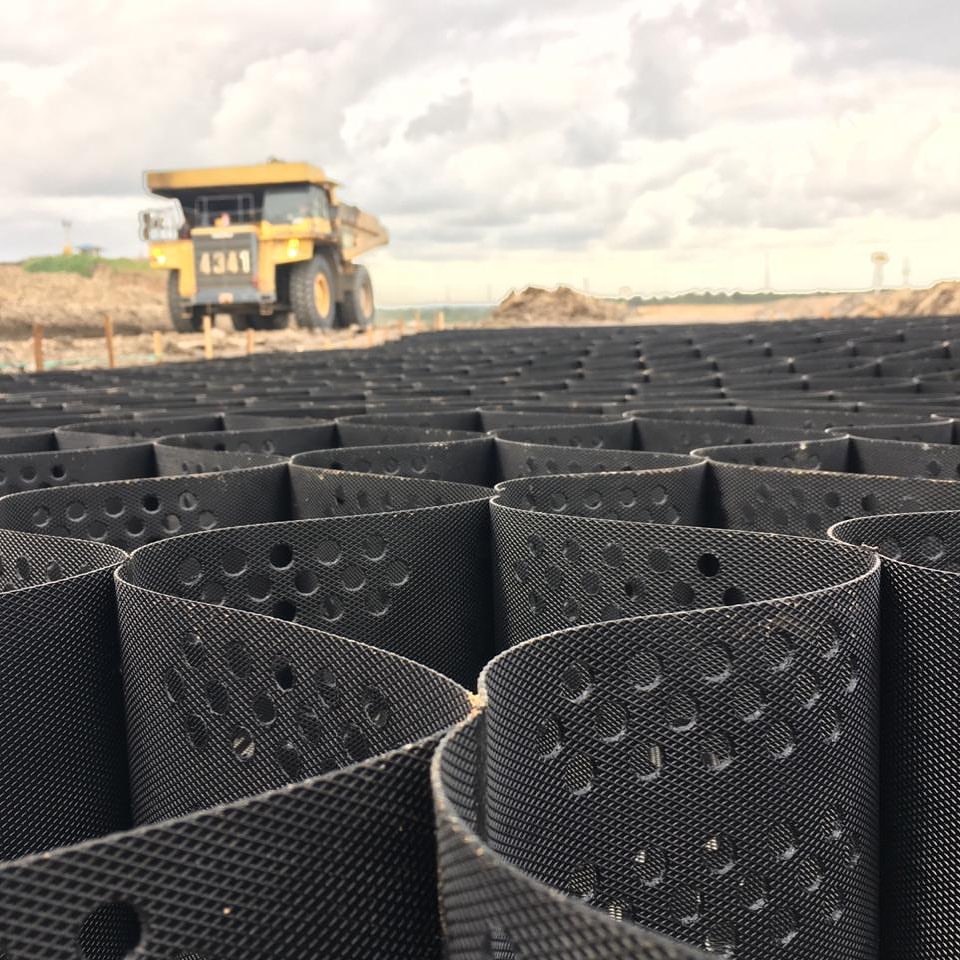

When expanded during installation, the interconnected strips form the walls of a flexible, three-dimensional cellular structure into which specified infill materials are placed and compacted. This creates a free-draining system that holds infill materials in place and prevents mass movements by providing confinement through tensile reinforcement. Cellular confinement systems improve the structural and functional behavior of soils and aggregate infill materials.
| Item No. | Height | Weld Distance | Thickness of The Sheet | Tensile Strength of Welding Points | Tensile Strength of Connection of Cells | Tensile Strength at Yield of Each Sheet |
| (mm) | (mm) | (mm) | (N/cm) | (N/cm) | (N/mpa) | |
| GS-50-400 | 50 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| GS-75-400 | 75 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| GS-100-400 | 100 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| GS-150-400 | 150 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| GS-200-400 | 200 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| Remarks: Width of the product can be made according to the customer's demand, and other special standards will carry out by agreement or contract. | ||||||
