Polyester Geogrid
25-200 Kn/m Road Construction Uniaxial Biaxial PVC Coated Polyester Geogrid Mesh
Product Description

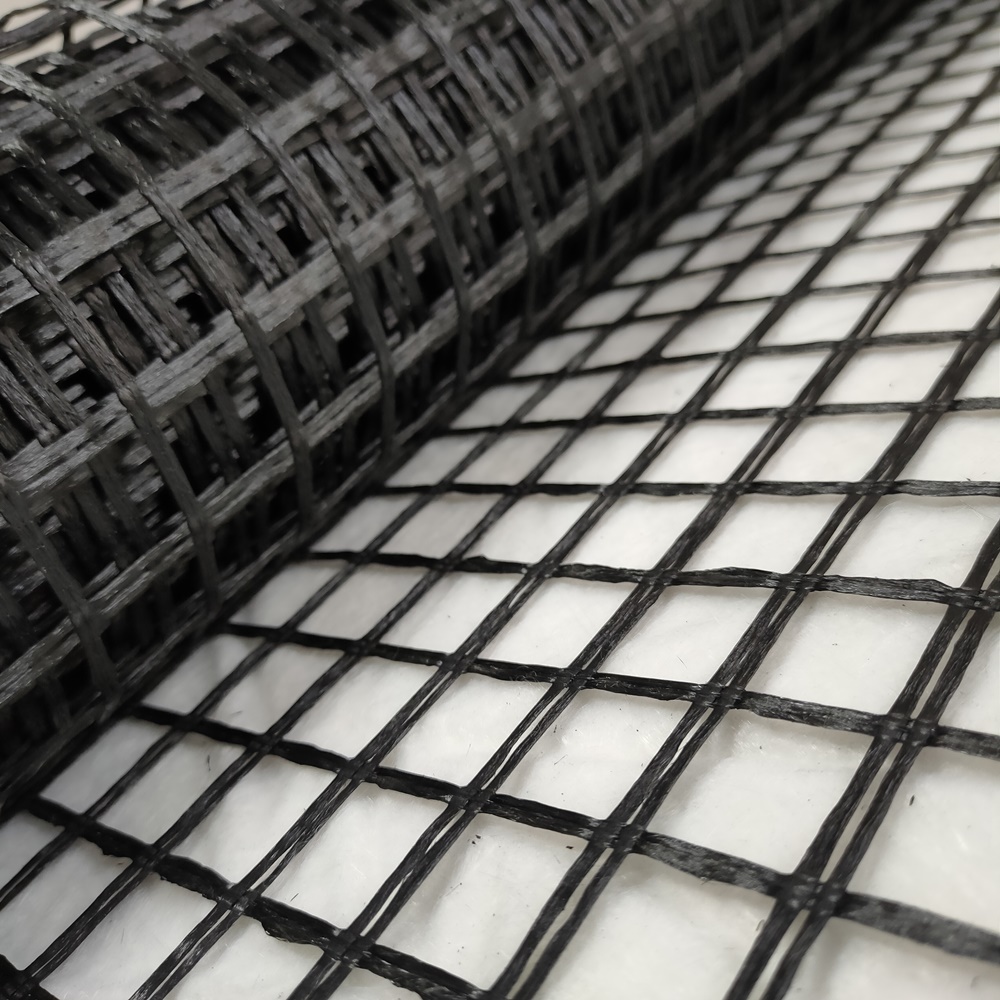

Polyester geogrid adopts high strength, high modulus, and low shrinkage twisting industrial polyester fiber as raw material.It is warp knitted with oriented structure and in the condition of no bending among warp and weft direction. Then it forms into mesh size product after coated with high quality oil or water-soluble PVC .
Product Display

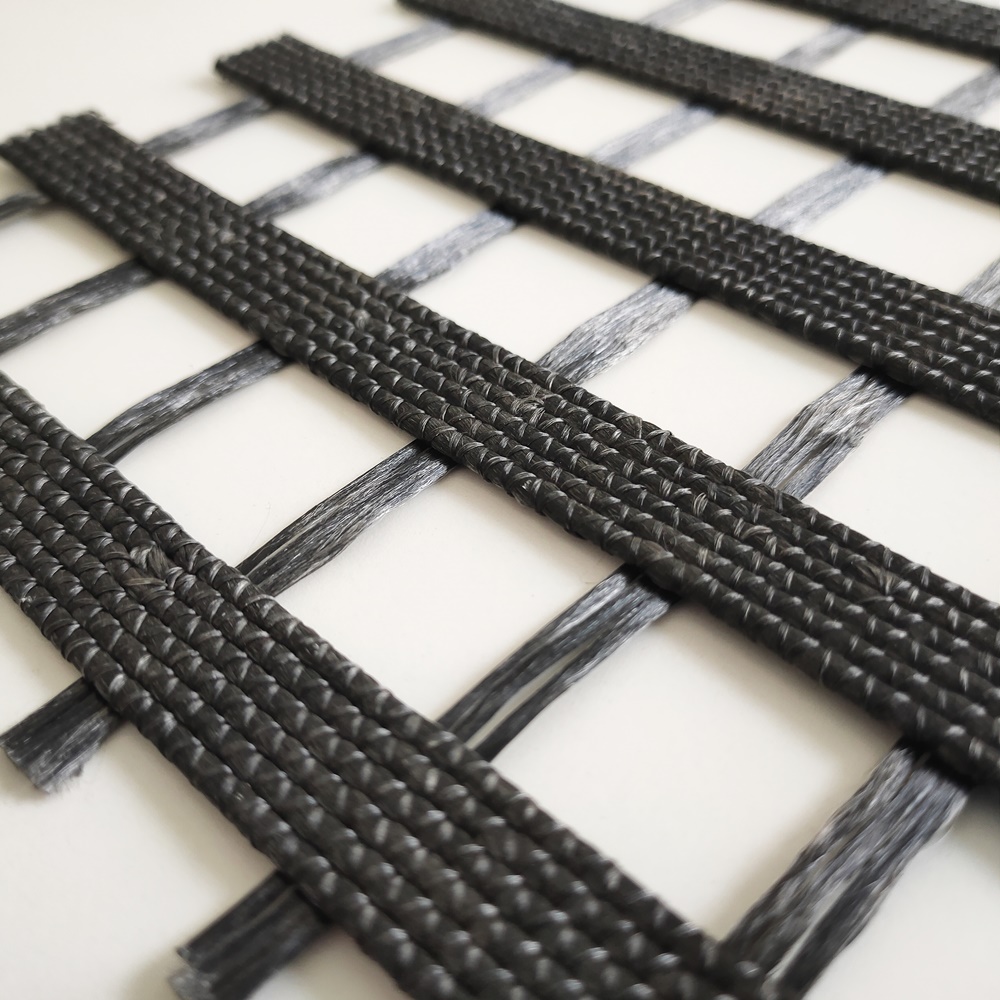

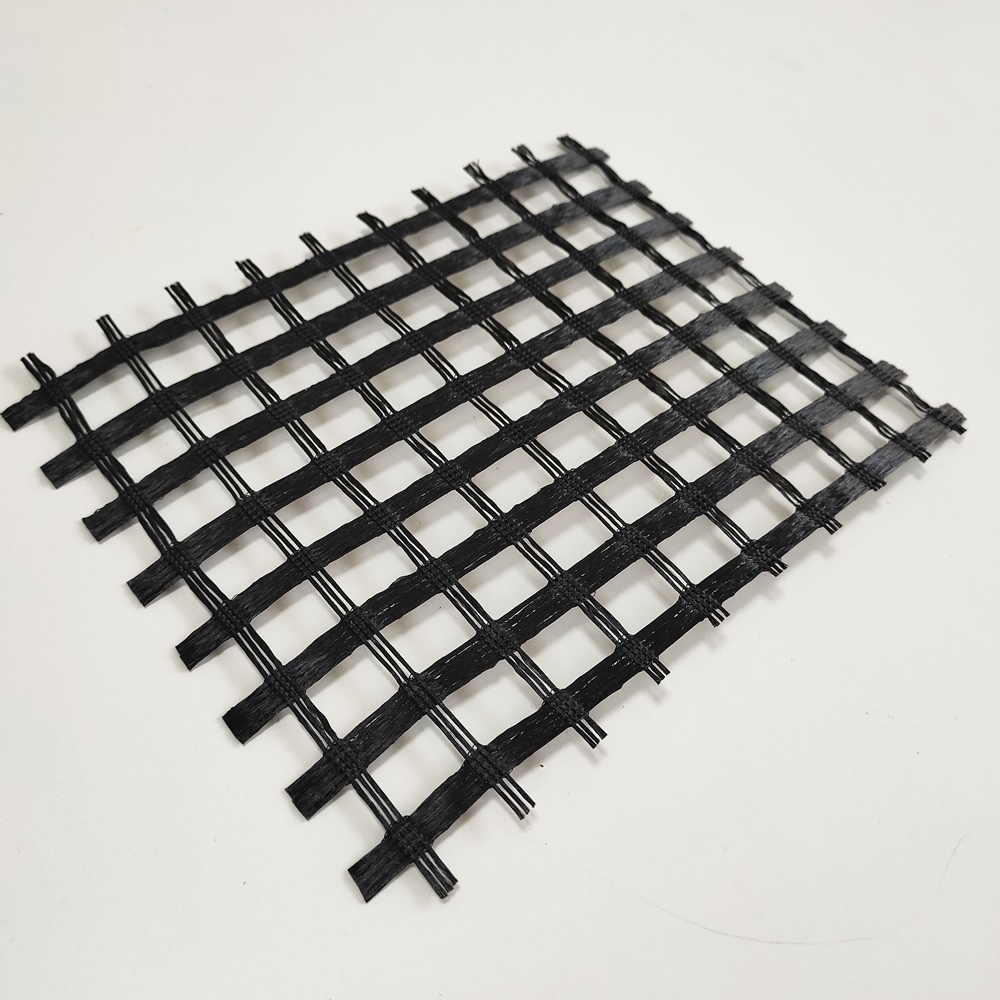

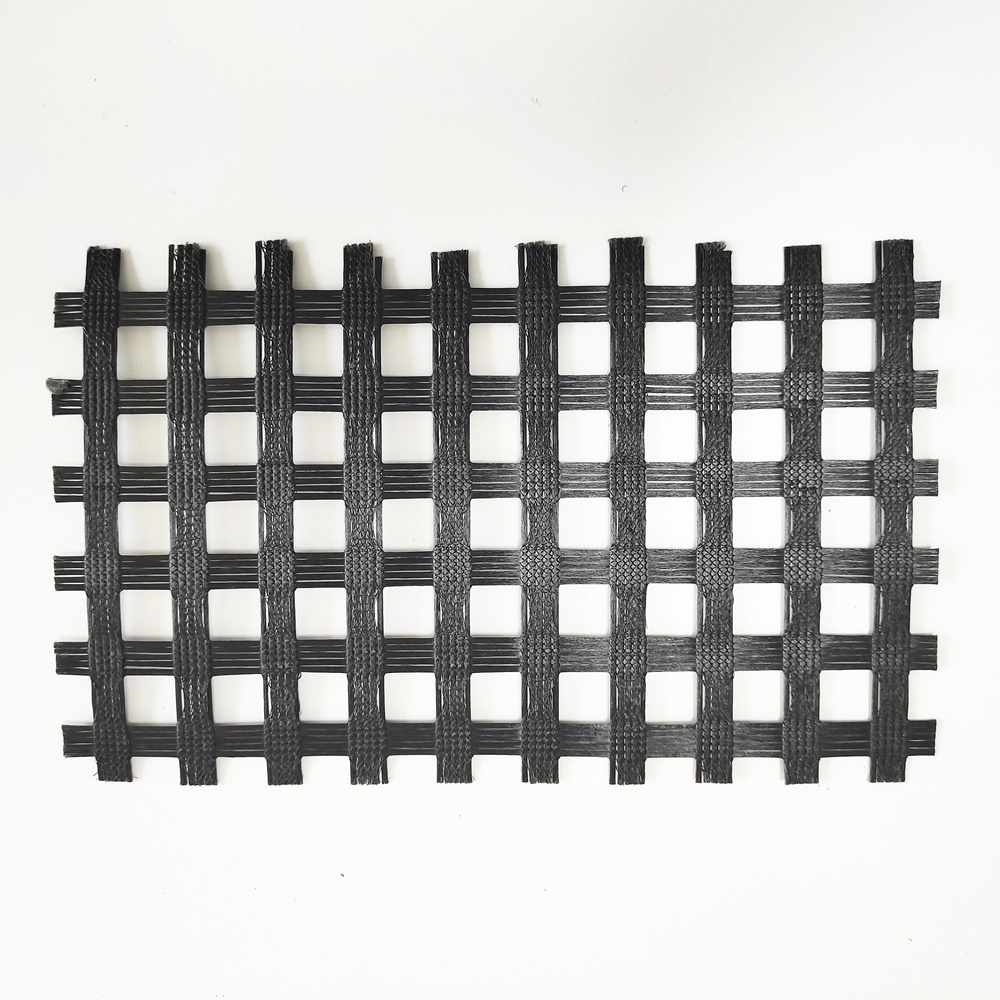

Polyester Geogrid 50-50kN/m Polyester Geogrid 400-50kN/m
2. Products Features
1. High tensile strength low elongation
| Spec | JBGS 55-30 | JBGS 60-30 | JBGS 80-30 | JBGS 100-30 | JBGS 120-30 | JBGS 150-30 | JBGS 200-30 | JBGS 300-30 | |
| Tensile strength ≥（kN/m） | warp | 55 | 60 | 80 | 100 | 120 | 150 | 200 | 300 |
| weft | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Elongation≤（%） | 13 or 10 | ||||||||
| Grid size(mm) | 25.4x25.4 or 50.8x50.8 or 76.2x76.2 | ||||||||
| Width(m) | 2 or 4 or 5.2 or 6 | ||||||||
| NOTES: Other tensile strength can be made: 400-50, 600-50, 800-100, 1200-200 etc. | |||||||||
| Spec | JBGS 30-30 | JBGS 50-50 | JBGS 60-60 | JBGS 80-80 | JBGS 100-100 | JBGS 120-120 | JBGS 150-150 | |
| Tensile strength ≥（kN/m） | warp | 30 | 50 | 60 | 80 | 100 | 120 | 150 |
| weft | 30 | 50 | 60 | 80 | 100 | 120 | 150 | |
| Elongation≤（%） | 13 or 10 | |||||||
| Grid size(mm) | 25.4x25.4 or 50.8x50.8 or 76.2x76.2 | |||||||
| NOTES: Other tensile strength can be made: 260-260, 400-400, 600-600, 800-800, 1200-1200 etc. | ||||||||

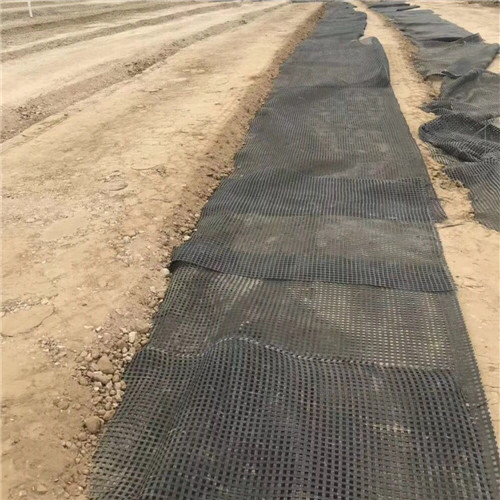

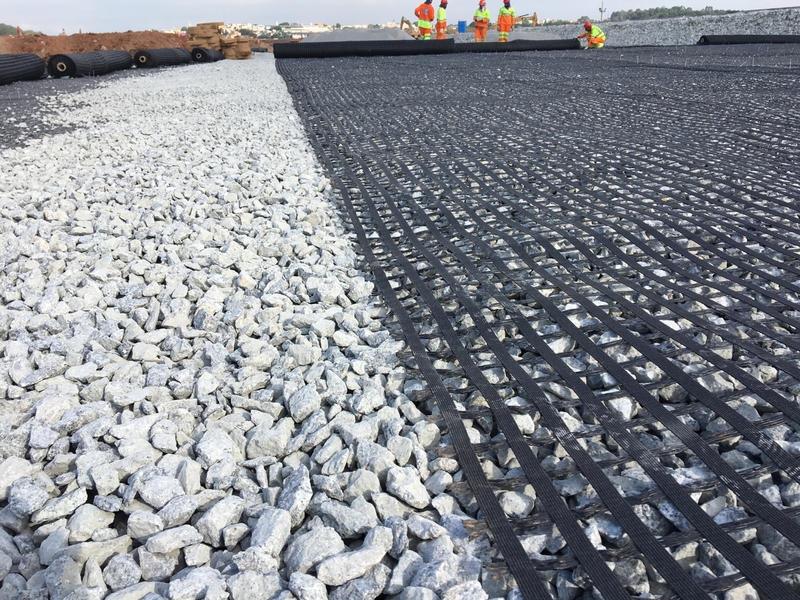

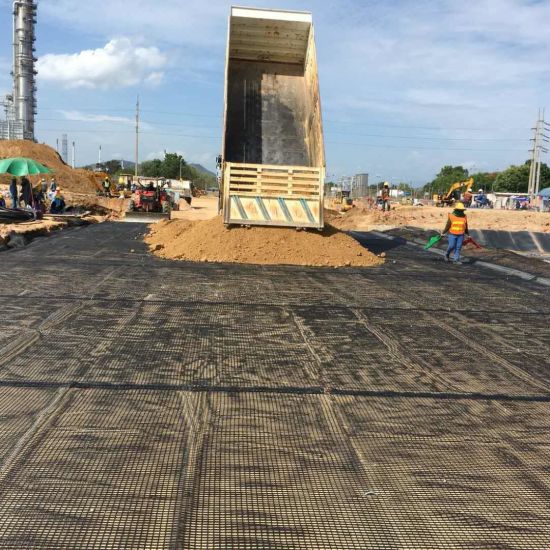

1. Reinforcement of soft soil subgrades of various roads such as highways, railways and municipal roads can effectively improve the strength of subgrades and delay road reflection cracks.

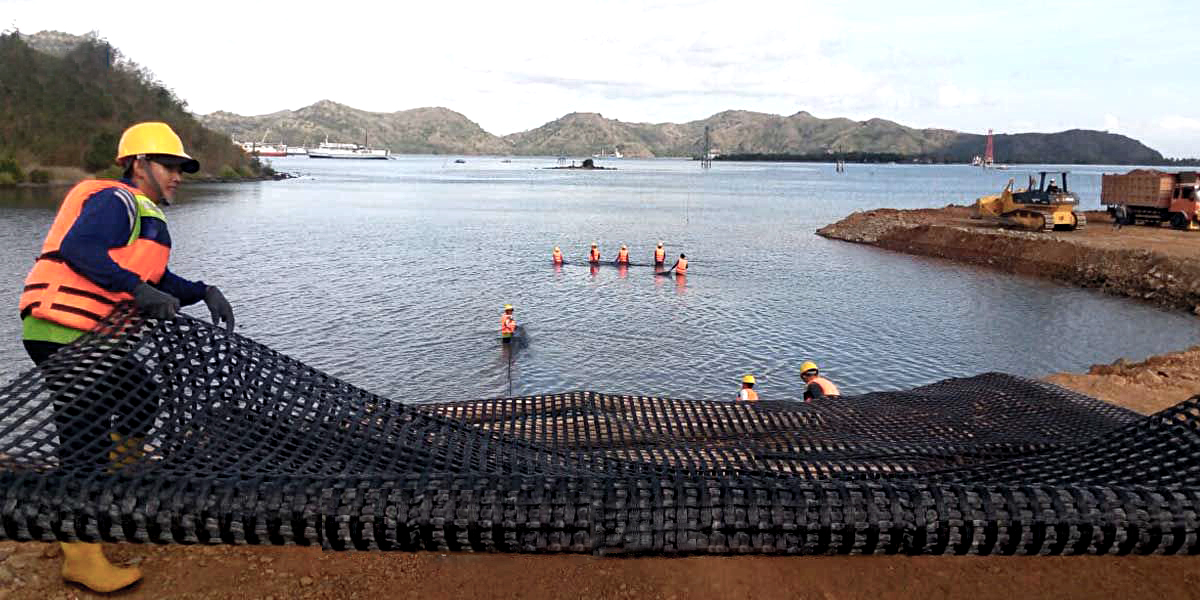

2. Reinforcement and isolation of dams and river channels in water conservancy projects strengthens the soft soil foundation, enhances its protective capacity, and improves the bearing capacity and stability of the foundation.
3. Used for reinforcement of embankment slopes and retaining walls to enhance overall strength.
