1. Corrosion resistance
2. good water resistance
3. Long lasting
4. Specifications can be customized
Color: | |
---|---|
Model Number: | |
Thickness: | |
Width: | |
Length: | |
Package: | |
Standard: | |
Availability: | |
Quantity: | |
geomembrane
zhongloo
geomembrane
Products Description
HDPE Geomembrane liner are made from polyethylene polymer materials that blow molding,its main function is to prevent the liquid leakage and gas volatile.According to the production of raw materials can divide into HDPE geomembrane liner and EVA geomembrane liner,etc.
Geomembranes are flexible sheet materials typically used as barriers to the passage of gases, liquids, or solids that combine long-term durability with strength, flexibility, and chemical resistance providing an impermeable barrier for a wide variety of applications.
HDPE smooth geomembranes are the preferred products for lining projects requiring low permeability, exceptional chemical and ultraviolet resistance properties, which makes them extremely cost-effective for many applications.
Specification
HDPE /LDPE /lldpe Geomembrane/pond Liner Price
Product name | HDPE /LDPE /lldpe geomembrane/pond liner |
Usage | Waterproof and seepage control project |
Color | Black/white/blue/double color |
Material | HDPE/LDPE/LLDPE/EVA |
Type | HDPE |
Thickness | 0.1mm-3.0m 1m-8m in roll width, the length as client's request |
Service valid term | More than 10 years! |
Payment term | L/C D/A D/P T/T Western Union Money Gram |
Packing detail | Packing in woven bags. Keep it away from fire. |
Property | Good flexible ,UV treated,Excellent environmental stress cracking resistance property,Low temperature resistance, corrosion resistance, aging resistance. |
Specific Use | Municioal environmental project, water conservancy projects,Landfill cap, mining heap leach pads,Pond liner, canal linings, tank,linings, raw water treatment reservoirs, retention ponds,Waste water treatment lagoon, secondary containment |
Geomembrane Technical Parameter (GB standard) | |||||||
Spec Properties | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
Thickness | 0.5mm | 0.75mm | 1.0mm | 1.25mm | 1.5mm | 2.0mm | 2.5mm |
Tensile Properties (each direction) (≥) .yield strength .break strength .yield elongation .break elongation | 7KN/m 10KN/m -- 600% | 10KN/m 15KN/m -- 600% | 13KN/m 20KN/m 11% 600% | 16KN/m 25KN/m 11% 600% | 20KN/m 30KN/m 11% 600% | 26KN/m 40KN/m 11% 600% | 33KN/m 50KN/m 11% 600% |
Density(≥) | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc |
Puncture Restistance (≥) | 120N | 180N | 240N | 300N | 360N | 480N | 600N |
Carbon Black Content | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
Carbon black Dispersion | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) |
Tear Resistance (≥) | 56N | 84N | 115N | 140N | 170N | 2255N | 280N |
Oxidative Induction Time(OIT) Standare OIT(≥) | 60min. | 60min. | 60min. | 60min. | 60min. | 60min. | 60min. |

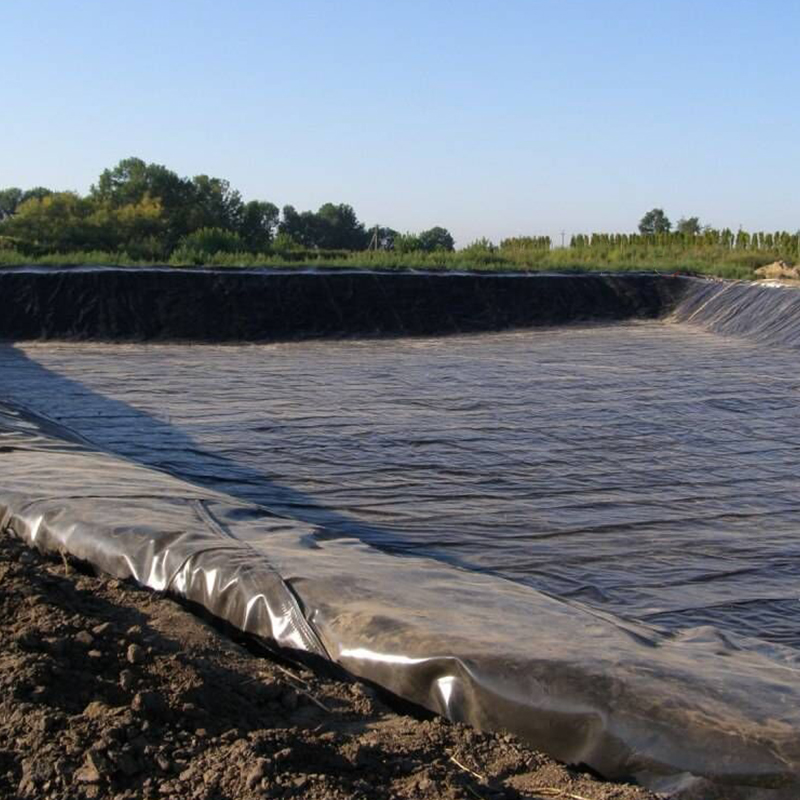

Our Project Cases
High Quality 1mm 3mm LDPE HDPE Geomembrane for Dam Waterproofing Geomembrane Pond Liner
Products Description
HDPE Geomembrane liner are made from polyethylene polymer materials that blow molding,its main function is to prevent the liquid leakage and gas volatile.According to the production of raw materials can divide into HDPE geomembrane liner and EVA geomembrane liner,etc.
Geomembranes are flexible sheet materials typically used as barriers to the passage of gases, liquids, or solids that combine long-term durability with strength, flexibility, and chemical resistance providing an impermeable barrier for a wide variety of applications.
HDPE smooth geomembranes are the preferred products for lining projects requiring low permeability, exceptional chemical and ultraviolet resistance properties, which makes them extremely cost-effective for many applications.
Specification
HDPE /LDPE /lldpe Geomembrane/pond Liner Price
Product name | HDPE /LDPE /lldpe geomembrane/pond liner |
Usage | Waterproof and seepage control project |
Color | Black/white/blue/double color |
Material | HDPE/LDPE/LLDPE/EVA |
Type | HDPE |
Thickness | 0.1mm-3.0m 1m-8m in roll width, the length as client's request |
Service valid term | More than 10 years! |
Payment term | L/C D/A D/P T/T Western Union Money Gram |
Packing detail | Packing in woven bags. Keep it away from fire. |
Property | Good flexible ,UV treated,Excellent environmental stress cracking resistance property,Low temperature resistance, corrosion resistance, aging resistance. |
Specific Use | Municioal environmental project, water conservancy projects,Landfill cap, mining heap leach pads,Pond liner, canal linings, tank,linings, raw water treatment reservoirs, retention ponds,Waste water treatment lagoon, secondary containment |
Geomembrane Technical Parameter (GB standard) | |||||||
Spec Properties | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
Thickness | 0.5mm | 0.75mm | 1.0mm | 1.25mm | 1.5mm | 2.0mm | 2.5mm |
Tensile Properties (each direction) (≥) .yield strength .break strength .yield elongation .break elongation | 7KN/m 10KN/m -- 600% | 10KN/m 15KN/m -- 600% | 13KN/m 20KN/m 11% 600% | 16KN/m 25KN/m 11% 600% | 20KN/m 30KN/m 11% 600% | 26KN/m 40KN/m 11% 600% | 33KN/m 50KN/m 11% 600% |
Density(≥) | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc |
Puncture Restistance (≥) | 120N | 180N | 240N | 300N | 360N | 480N | 600N |
Carbon Black Content | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
Carbon black Dispersion | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) |
Tear Resistance (≥) | 56N | 84N | 115N | 140N | 170N | 2255N | 280N |
Oxidative Induction Time(OIT) Standare OIT(≥) | 60min. | 60min. | 60min. | 60min. | 60min. | 60min. | 60min. |
Our Project Cases
High Quality 1mm 3mm LDPE HDPE Geomembrane for Dam Waterproofing Geomembrane Pond Liner
