Other Geotechnical Materials


1.COMPACT DIMENSIONS
2.SAFETY FRAME
3.SIMPLE CONTROL
4.EASY MAINTENANCE
5.VERSATILITY
6.EXTENDING UNDERCARRIAGE
Frequency:
50/60HZ
Welding Area:
100mm-150mm
Usage:
Plastic liner Welding
Key Selling Points:
Automatic
Type:
Semi-automatic
Welding material:
PP HDPE PE PVC EVA
Welding speed:
0.5-5.0m/min
Availability:
Quantity:
Inquire Add to Basket

  • welding machine

  • zhongloo

  • welding machine

Plastic Welder 800w HDPE LDPE geomembrane welding machine

contact informations


Geomembrane Welding Machine-ZL800

1.Geomembrane Welding machine description:
ZL800 Geomembrane welding machine can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and so on.
The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation; speed control adopts PWM automatic voltage and speed regulation circuit, driven by DC servo motor, with great output torque and the operating is stable.
It can maintain a constant speed on the condition of creeping, vertical creeping and variable road load. Also this series of welding machine is stable in performance despite of external temperature and voltage variation.


welding machine picture


FEATURES AT A GLANCE



1.COMPACT DIMENSIONS
2.SAFETY FRAME
3.SIMPLE CONTROL
4.EASY MAINTENANCE
5.VERSATILITY

6.EXTENDING UNDERCARRIAGE









welding machine picturewelding machine picturewelding machine picture

Product Paramenters
Brand &Type
Geomembrane Welding Machine
Welding width
12.5mm×2, interior cavity 12mm
Voltage
220V/110V/Customized
Seam strength
≥85% base material(tensile resistant in shear direction)
Power
800W
Net Weight
13kg
Frequency
50/60Hz
Gross Weight
15kg
Welding Speed
0-5m/min
Usage
geomembrane wedge welder
Heating temperature
20-450℃
Plug Standard
Euro Plug/ U.S. Plug/British Plug/Plug adaptor
Thickness of material
0.2mm--1.5mm
Overlap width
100mm
Operating Procedures
1. The control case is leveled and the upper and lower pressure wheels are separated to prevent the pressure wheels from idling and damaging the machine after starting up
2. Turn on the power and turn on the power switch.
3. First set the temperature, the normal thickness of the material is 1mm, the temperature is adjusted to about 350 ℃.
4. Adjust the welding speed according to the thickness of the material, according to the normal 1mm material, the speed is adjusted to 2.5m/min.
5. When the red light of the control box turns to green, put the materials to be welded from the left and right sides of the machine respectively, and the joystick rotates from bottom to top to be 90° with the ground.
6. Adjust the speed according to the welding effect, the high temperature is fast, on the contrary, the low temperature is slow. (Try not to adjust the temperature and speed in the middle of the process) Set the temperature first when starting up. If the material is thin or the first time you operate, set Wendy to a lower value when starting up.

7. After welding, immediately level the joystick to separate the upper and lower pressing wheels (to prevent the pressing wheels from being damaged by high temperature), then adjust the temperature speed to the lowest, and finally turn off the power after shutting down.


PRODUCT CONFIGURATION
welding machine picture welding machine picture welding machine picture

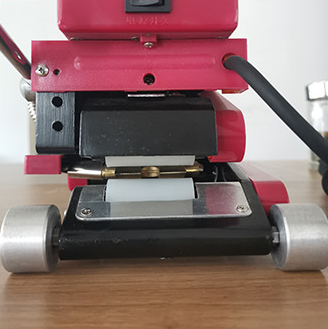

High-quality stainless steel pressure roller, high temperature resistance, smooth and firm welding effect, pressure can be adjusted according to the thickness of different membranes

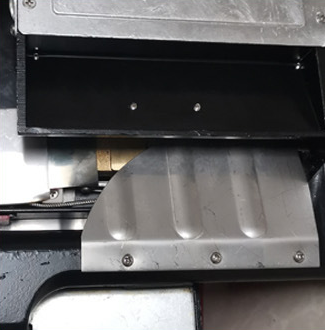

High-quality copper alloy heating plate, with automatic temperature control detection system, fast heating speed, heating time 1-5 seconds, accurate temperature

The production process has undergone aging and reliability testing to stabilize overvoltage and overcurrent, constant power, and constant temperature control systems

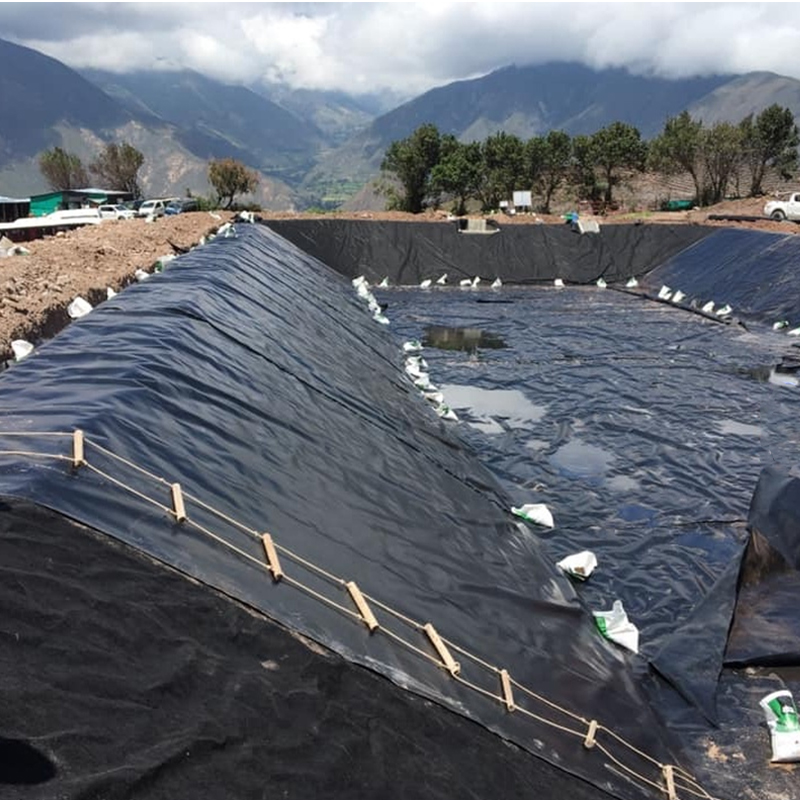

HDPE Geomembrane Pond Liner Sheet Application
geomembrane application
geomembrane application
geomembrane application
FAQ
1.Why choose us?
We are manufacturer of plastic welders for more than 10 years with technicians team and after sales service.
2.How to guarrantee the quality?
Warranty is 1 year,if there is any quality problems ,we accept return or give spare parts for free.
3.How to solve if it is necessary to repair?
Our technicians will check problems that you pass to,and offer solving resolutions in short time.
4.Delivery?
1-5pcs is always on stock,we deliver in 3days after payment.
5.Customized products accepted?
Yes ,we make OEM products with labels and colors ,also distributors all over the world wanted.
