1. Freely retractable, foldable for transportation
2. Wear resistance, photooxidation resistance, acid and alkali resistance
3. High lateral restriction and anti-slip, anti-deformation
4. Convenient connection and fast construction speed
| Color: | |
|---|---|
| Application: | |
| Product name: | |
| Peel strength of welding point: | |
| Keyword: | |
| THICKNESS: | |
| Quantity: | |
geocell
zhongloo
3926909090
Plastic Hdpe Honeycomb Geocell Ground Grid Paver Stabilizer Driveway Factory Geocel Sale Price for Road Slope Protection
Product Description
Plastic HDPE geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.
2.Product Feature
1.Light weight, wear-resistant, chemical stability, light oxidation aging, anti-acid/alkali corrosion, applied to different geological conditions, such as saline soil, desert, etc.
2.Wide temperature range, high tensile strength, good rigidity and toughness, good load capacity and anti-erosion ability.
3.Size is relatively stable, change the height and welding distance can meet the needs of different projects.
4.Retractile, easy to transport.
5.Easy to use, can use the local materials and achieve rapid construction, reduce construction costs.
6.Can be used repeatedly.
3.Product Parameter
| ITEM | Cell height (mm) | Solder distance (mm) | Sheet thickness (mm) | Weight (g/m2) | Welding place adhesion (N) |
| GS-250 | 250 | 3310±200 | 2560 | ||
| GS-200 | 200 | 2648±200 | 2050 | ||
| GS-150 | 150 | 340 | 1±0.05 | 1986±200 | 1460 |
| GS-100 | 100 | 1324±200 | 1023 | ||
| GS-75 | 75 | 933±200 | 864 | ||
| GS-50 | 50 | 662±200 | 560 | ||
| PS: Special specification according to agreement or contract execution. | |||||
4. Geocell Applications
Geocell Cellular Erosion Control
A.solid railway roadbed
B.highway's soft foundation
C.withstand truck force embankments,retaining wall
D.running shallow river
E.pipeline and the sewer's support structure
F.to prevent landslides and load force by the hybrid wall
G.to use independent wall ,wharf ,breakwater and so on
H.to govern the desert, beaches and the riverbed , banks
5.Project Cases
plastic hdpe honeycomb geocell ground grid paver stabilizer driveway factory Geocel sale price for road slope protectionhdpe geo cell geocell for sale

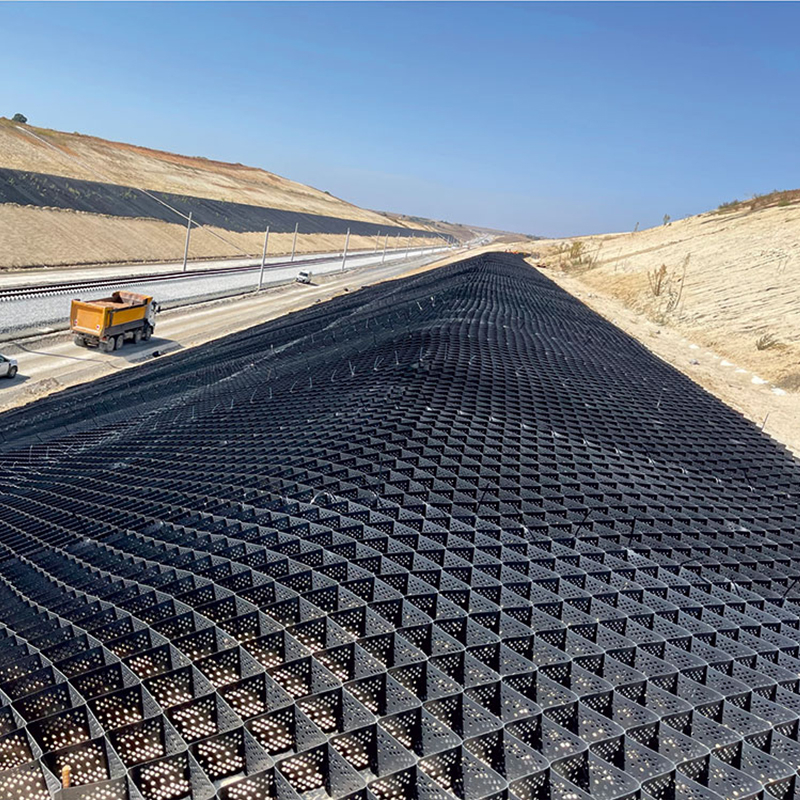

Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.
stability of slopes using vegetated topsoil, aggregate or concrete surfacing
Gruound Stabilisation
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement; working platforms in intermodal ports; airport runways.
Retaining Wall
Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls) for steep faces, walls and irregular topography
